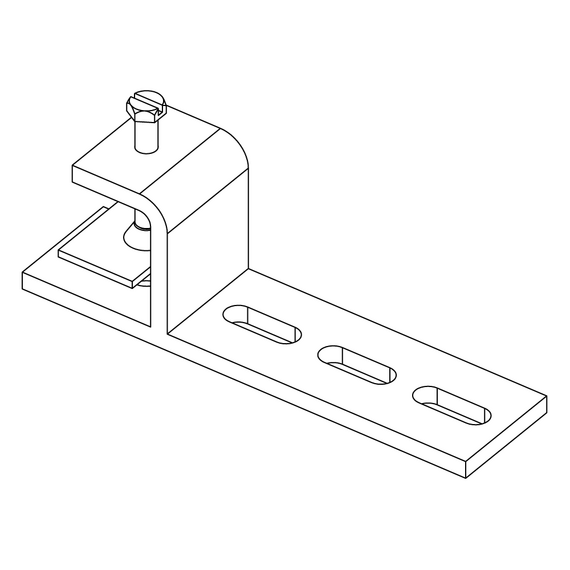

KLUGW Clamp mounting universal, welded, horizontal

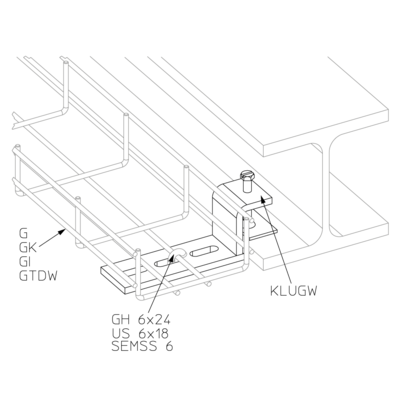

Clamp fastener, horizontal, for clamping mesh cable trays to steel girders;

Tightening torque: 10Nm

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

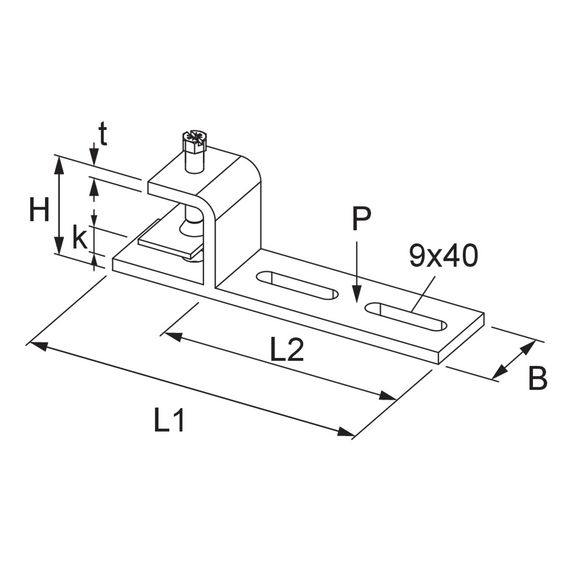

	height	width	width	t material thickness	k clamping range	P_maxMaximum load	weight
KLUGW 20F	50 mm	218 mm	270 mm	6 mm	3 - 31 mm	0,7 kN	0,647 kg
KLUGW 30F	50 mm	323 mm	375 mm	6 mm	3 - 31 mm	0,4 kN	0,824 kg
KLUGW 10F	50 mm	113 mm	165 mm	6 mm	3 - 31 mm	1,1 kN	0,469 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	width	t material thickness	k clamping range	P_maxMaximum load	weight
IK 5X10
KLUGW 20E	50 mm	218 mm	270 mm	6 mm	3 -31 mm	0,7 kN	0,607 kg
KLUGW 30E	50 mm	323 mm	375 mm	6 mm	3 -31 mm	0,4 kN	0,774 kg
KLUGW 10E	50 mm	113 mm	165 mm	6 mm	5 -31 mm	1,1 kN	0,440 kg

Details / Applications
