KWS Wall/handle bracket, heavy

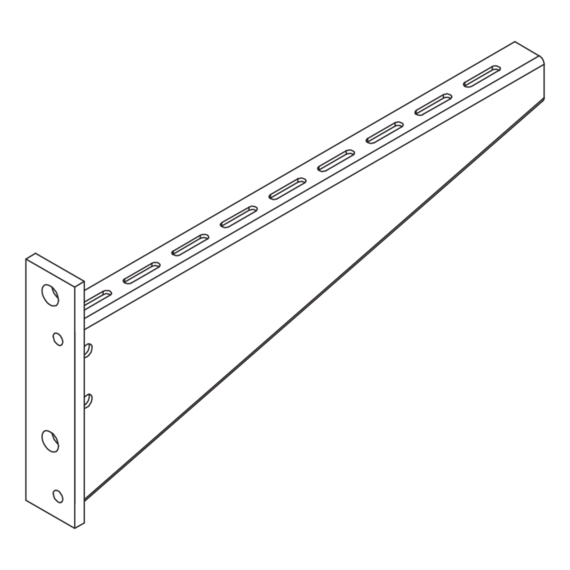

Wall/handle bracket, heavy-duty version, with welded-on back plate. Certified according to DIN EN 61537. For mounting on walls or hanging struts.

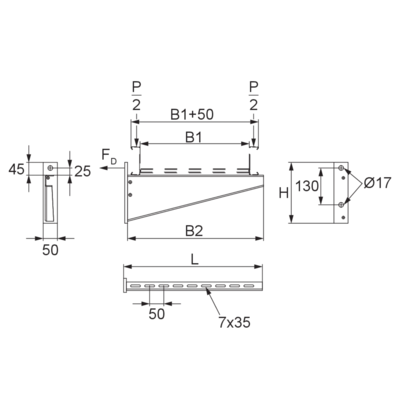

F_D/P: coefficient for calculation of the dowel load F_D with effective bracket load P respectively the sum of effective bracket loads. The load specifications are only valid with sufficient anchoring to the load-bearing substrate or with proper installation on hanging struts.

Assembly Instruction

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

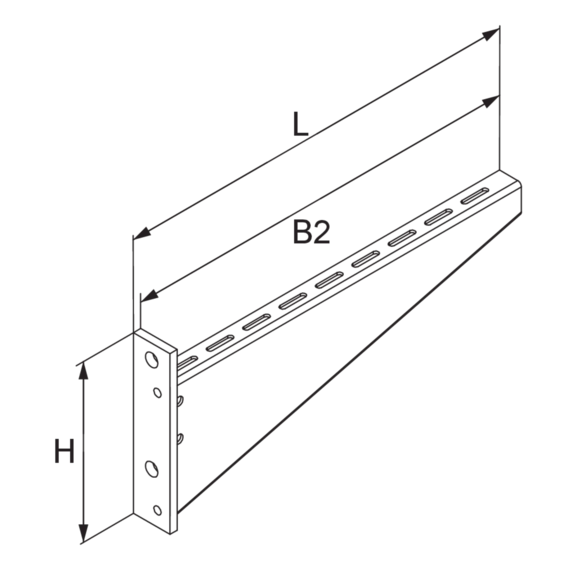

	height	width	width	length	P_maxMaximum load	F_D/P dowel-to-anchor load	weight
KWS 030F	215 mm	300 mm	380 mm	390 mm	6,7 kN	1,49	2,232 kg
KWS 040F	215 mm	400 mm	480 mm	490 mm	6,5 kN	1,69	2,607 kg
KWS 050F	215 mm	500 mm	580 mm	592 mm	6,3 kN	1,91	3,142 kg
KWS 060F	215 mm	600 mm	680 mm	692 mm	6,1 kN	2,13	3,505 kg
KWS 070F	215 mm	700 mm	780 mm	792 mm	5,2 kN	2,60	3,869 kg
KWS 080F	215 mm	800 mm	880 mm	892 mm	4,4 kN	3,07	4,233 kg
KWS 090F	215 mm	900 mm	980 mm	992 mm	3,6 kN	3,56	4,597 kg
KWS 100F	215 mm	1000 mm	1080 mm	1092 mm	2,8 kN	4,06	4,961 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	width	length	P_maxMaximum load	F_D/P dowel-to-anchor load	weight
KWS 030E	215 mm	300 mm	380 mm	390 mm	6,7 kN	1,49	2,123 kg
KWS 040E	215 mm	400 mm	480 mm	490 mm	6,5 kN	1,69	2,463 kg
KWS 050E	215 mm	500 mm	580 mm	590 mm	6,3 kN	1,91	2,813 kg
KWS 060E	215 mm	600 mm	680 mm	690 mm	6,1 kN	2,13	3,153 kg
KWS 070E	215 mm	700 mm	780 mm	790 mm	5,2 kN	2,60	3,503 kg
KWS 080E	215 mm	800 mm	880 mm	890 mm	4,4 kN	3,07	3,843 kg
KWS 090E	215 mm	900 mm	980 mm	990 mm	3,6 kN	3,56	4,193 kg
KWS 100E	215 mm	1000 mm	1080 mm	1090 mm	2,8 kN	4,06	4,533 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	width	length	P_maxMaximum load	F_D/P dowel-to-anchor load	weight
KWS 030E4	215 mm	300 mm	380 mm	390 mm	6,7 kN	1,49	2,143 kg
KWS 040E4	215 mm	400 mm	480 mm	490 mm	6,5 kN	1,69	2,493 kg
KWS 050E4	215 mm	500 mm	580 mm	590 mm	6,3 kN	1,91	2,833 kg
KWS 060E4	215 mm	600 mm	680 mm	690 mm	6,1 kN	2,13	3,183 kg
KWS 070E4	215 mm	700 mm	780 mm	790 mm	5,2 kN	2,60	3,533 kg
KWS 080E4	215 mm	800 mm	880 mm	890 mm	4,4 kN	3,07	3,883 kg
KWS 090E4	215 mm	900 mm	980 mm	990 mm	3,6 kN	3,56	4,233 kg
KWS 100E4	215 mm	1000 mm	1080 mm	1090 mm	2,8 kN	4,06	4,583 kg
