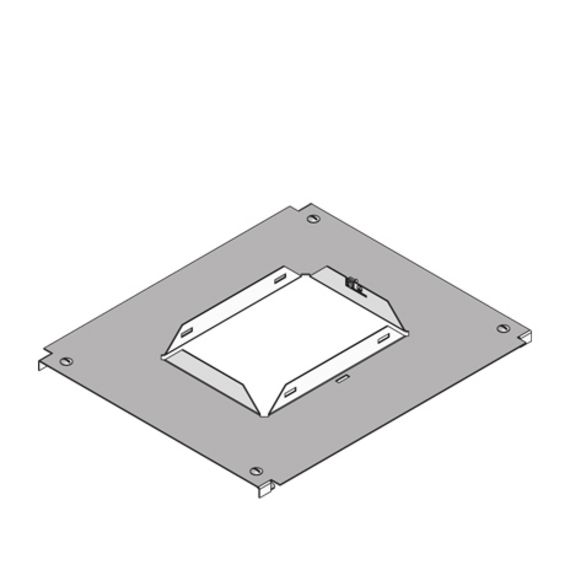

Assembly covers made of Sendzimir hot-dip galvanized sheet steel for latching to the side profile of the bottom part of the cable duct including turning bolt. Usable as pull- and installation box, with one opening for insertion of a shuttering unit that will be replaced with a rectangular assembly unit during final assembly.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

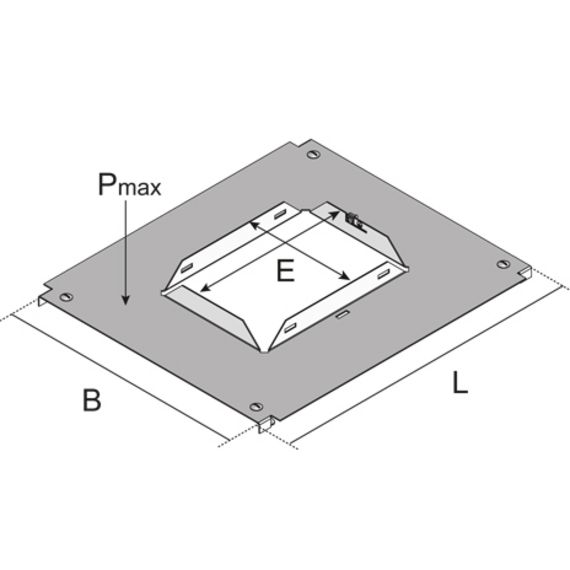

| width | length | E fitting dimension | PmaxMaximum load | mounting box Maximum number of installable device casings. | weight | |||
|---|---|---|---|---|---|---|---|---|
| UKDA-185V 30S | 300 mm | 420 mm | 187 x 262 mm | 0,75 kN | 2 | 1,39 kg | ||
| UKDA-185V 40S | 400 mm | 495 mm | 187 x 262 mm | 0,75 kN | 2 | 2,26 kg |
