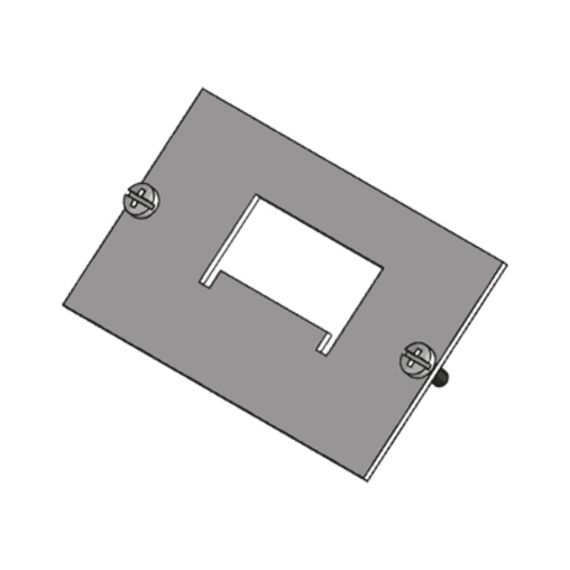

Installation board made of aluminium, coated black. To be screwed into a data device carrier. Retainer for snap-in plug-type connection sockets or plugs
Aluminium

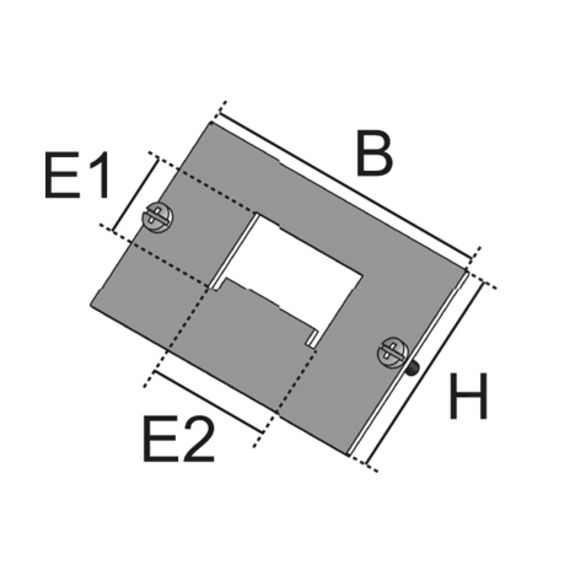

| height | width | E1 fitting dimension | E2 fitting dimension | snap-in socket Maximum number of installable snap-in sockets | weight | ||
|---|---|---|---|---|---|---|---|
| UDEP-5PCOM 1 | 46 mm | 75 mm | 18,5 mm | 31,8 mm | 1x 5 pole X-COM, 400 V, 32 A | 0,03 kg |
