Round single-outlet made of plastic, equipped with an isolated ground receptacle and an empty space for data technology. With floor cover protection frame including a pivotable cover with cable outlet, mounting box with strain relief and a set of claws. For the installation into screed and raised floor/hollow floor openings. Equipped with a isolated ground receptacle of 45x45mm and a RJ45 dummy data cover 22.5x45 mm. Suitable for rooms with dry-cleaned floor covers. Designed for office traffic loads.
Please mind the technical information in chapter planning.
Assembly Instruction
dry-cleaned
Electrical and electronic equipment must not be disposed off via the household waste.
Acrylonitrile-butadiene-styrene copolymer
| height | HminMinimum installation height | width | E fitting dimension | PmaxMaximum load | color | IPnIP protection level in unused condition | IPgIP protection level in used condition | weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BODO T-G | 126 mm | 102 mm | 133 mm | 122 mm | 1,5 kN | RAL 7011 (iron grey) | IP 30 | IP 20 | 0,40 kg | ||
| BODO T-S | 126 mm | 102 mm | 133 mm | 122 mm | 1,5 kN | RAL 9011 (graphite black) | IP 30 | IP 20 | 0,40 kg |
Underfloor systems
Single outlet BODO - wet and dry maintenance floors
Installation units for screed and hollow floors

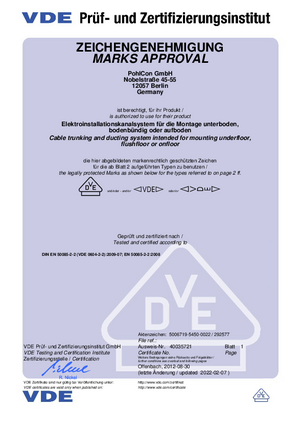

Test certificate for VDE testing according to DIN EN 50085, BODO, single outlet
