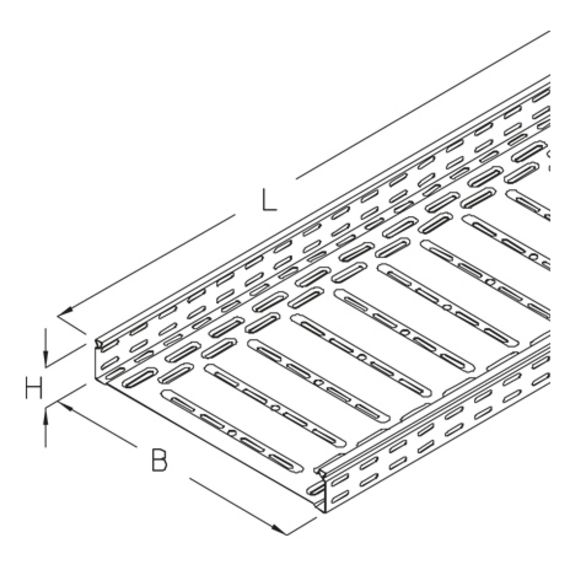

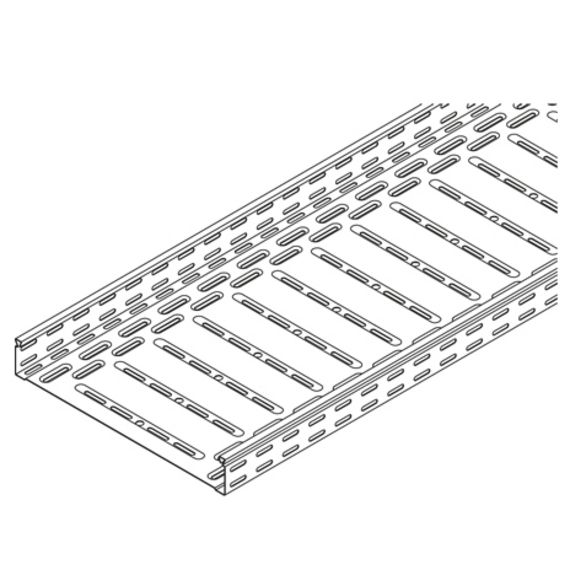

RG 60 cable tray, perforated, height = 60 mm Maintenance of function, specified system

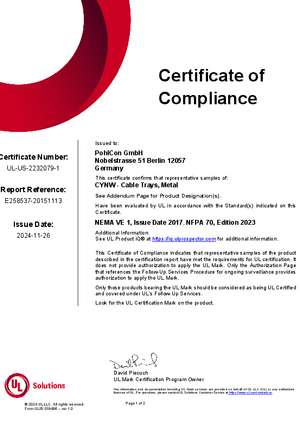

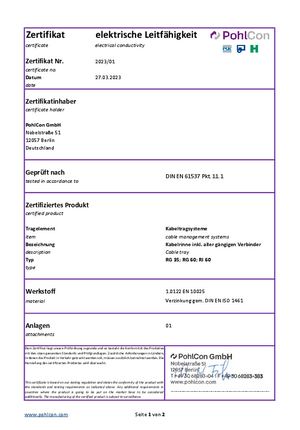

cable tray perforated, head shape suitable for positive locking covers, with longitudinal and lateral reinforcing rims reducing bottom deflection, certified including electrical conductivity according to DIN EN 61537

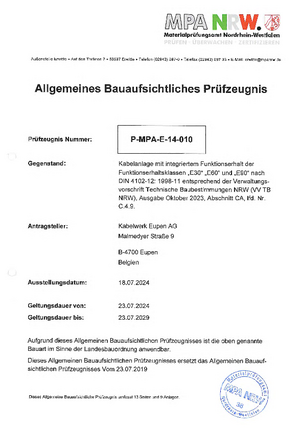

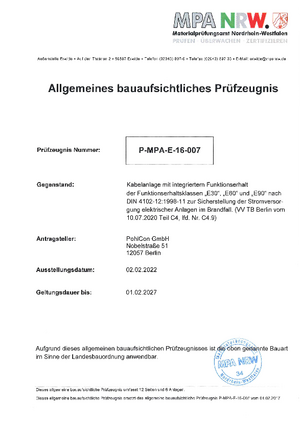

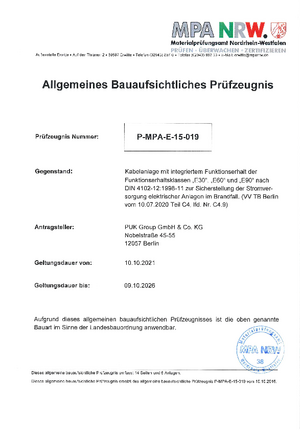

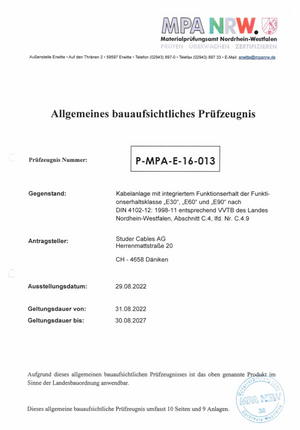

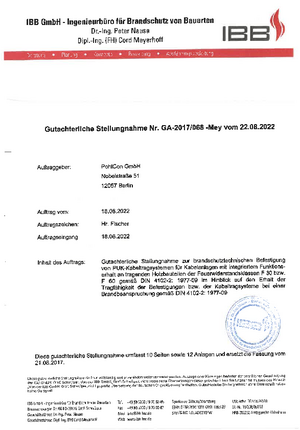

The productes can be used for fire protection. For technical parameters and cable load Q_SK see National Technical Test Certificates (abPs).

Assembly Instruction

Do not walk upon!

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RG 60-10S	60 mm	100 mm	3000 mm	0,75 mm	57 cm²	0,09 kN/m	4,30 kg
RG 60-20S	60 mm	200 mm	3000 mm	0,75 mm	117 cm²	0,18 kN/m	5,80 kg
RG 60-30S	60 mm	300 mm	3000 mm	0,75 mm	177 cm²	0,27 kN/m	7,40 kg
RG 60-40S	60 mm	400 mm	3000 mm	0,88 mm	237 cm²	0,36 kN/m	10,60 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RG 60-10F	60 mm	100 mm	3000 mm	0,75 mm	57 cm²	0,09 kN/m	4,80 kg
RG 60-20F	60 mm	200 mm	3000 mm	0,75 mm	117 cm²	0,18 kN/m	6,50 kg
RG 60-30F	60 mm	300 mm	3000 mm	0,75 mm	177 cm²	0,27 kN/m	8,30 kg
RG 60-40F	60 mm	400 mm	3000 mm	0,88 mm	237 cm²	0,36 kN/m	11,70 kg
