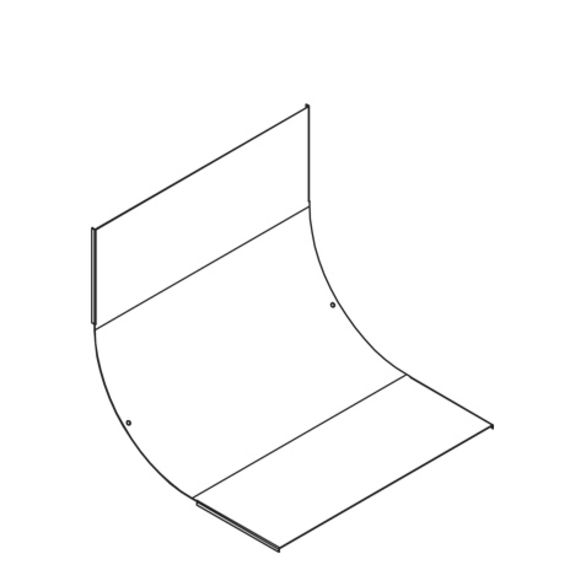

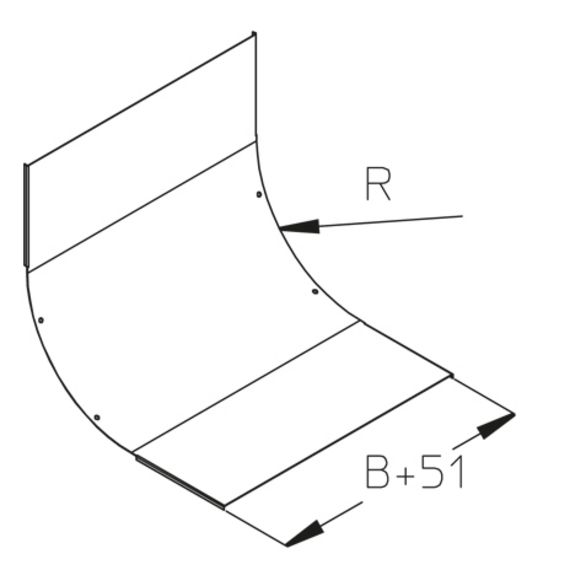

cover for wide-span inside riser
If the cover is to be mounted elevated, this must be mentioned separately in your order, e.g. WPFDA ("A" - German "aufgeständert" means elevated) This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | radius | weight | ||
|---|---|---|---|---|
| WPSD 20S | 200 mm | 450 mm | 1,91 kg | |
| WPSD 30S | 300 mm | 450 mm | 3,5 kg | |
| WPSD 40S | 400 mm | 450 mm | 4,48 kg | |
| WPSD 50S | 500 mm | 450 mm | 6,81 kg | |
| WPSD 60S | 600 mm | 450 mm | 8,03 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | radius | weight | ||
|---|---|---|---|---|
| WPSD 20F | 200 mm | 450 mm | 2,04 kg | |
| WPSD 30F | 300 mm | 450 mm | 3,75 kg | |
| WPSD 40F | 400 mm | 450 mm | 4,79 kg | |
| WPSD 50F | 500 mm | 450 mm | 7,29 kg | |
| WPSD 60F | 600 mm | 450 mm | 8,59 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | radius | weight | ||
|---|---|---|---|---|
| WPSD 20E | 200 mm | 450 mm | 1,91 kg | |
| WPSD 30E | 300 mm | 450 mm | 3,5 kg | |
| WPSD 40E | 400 mm | 450 mm | 4,48 kg | |
| WPSD 50E | 500 mm | 450 mm | 6,81 kg | |
| WPSD 60E | 600 mm | 450 mm | 8,03 kg |
