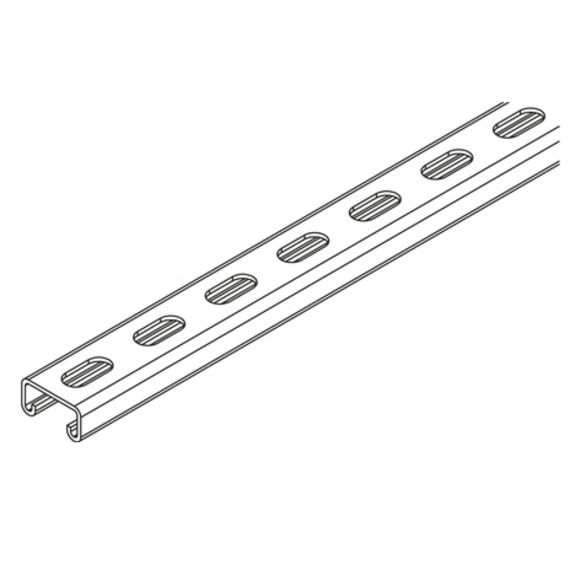

KHA 21 profile rail 41x21 mm, perforated

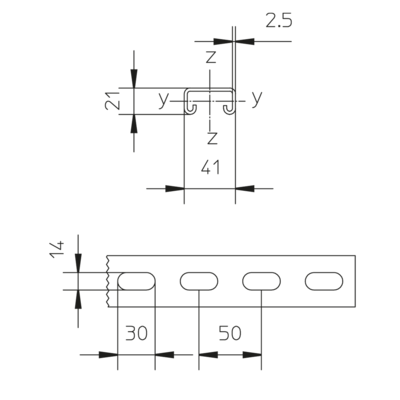

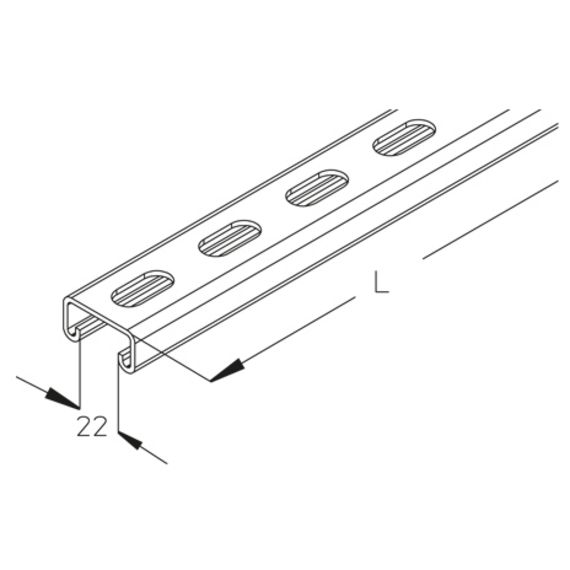

profile rail 41x21x2.50 mm, with continuous perforation 14x30, slot size 22 mm

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	weight
KHA 21-30F	21 mm	41 mm	3000 mm	2,50 mm	5,32 kg
KHA 21-60F	21 mm	41 mm	6000 mm	2,50 mm	10,64 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	length	t material thickness	weight
KHA 21-30E4	21 mm	41 mm	3000 mm	2,50 mm	4,97 kg
KHA 21-60E4	21 mm	41 mm	6000 mm	2,50 mm	9,94 kg

Details / Applications
