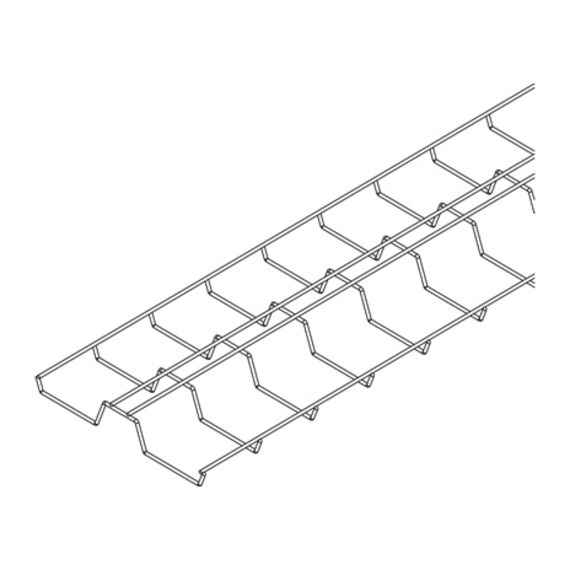

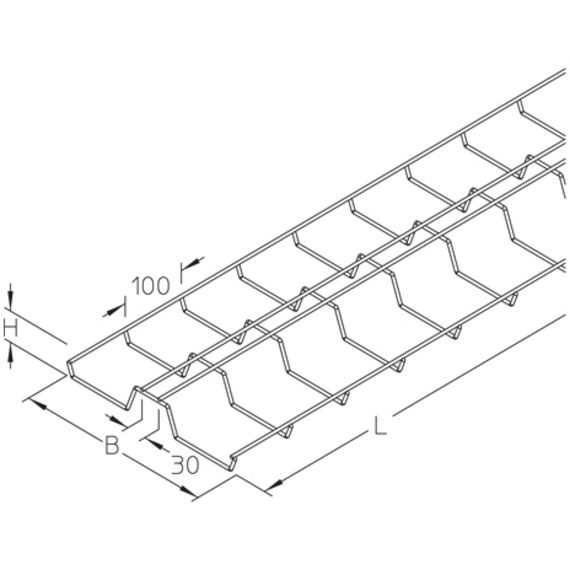

GTD 30 mesh cable tray, W-shape, height = 50 mm

Mesh cable tray, W-shape, for mounting directly to ceiling.

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GTD 30GV	50 mm	300 mm	3000 mm	4,5 mm	85 cm²	0,13 kN/m	3,01 kg

Pre-galvanised (DIN EN 10244-2)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GTD 30S	50 mm	300 mm	3000 mm	4,5 mm	85 cm²	0,13 kN/m	3,01 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GTD 30F	50 mm	300 mm	3000 mm	4,5 mm	85 cm²	0,13 kN/m	3,22 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
GTD 30E	50 mm	300 mm	3000 mm	4,5 mm	85 cm²	0,13 kN/m	3,03 kg

Details / Applications
