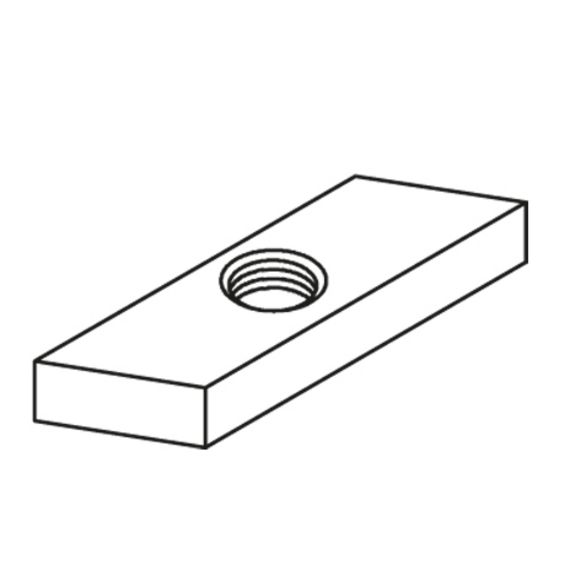

AM16 channel nut, B7

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

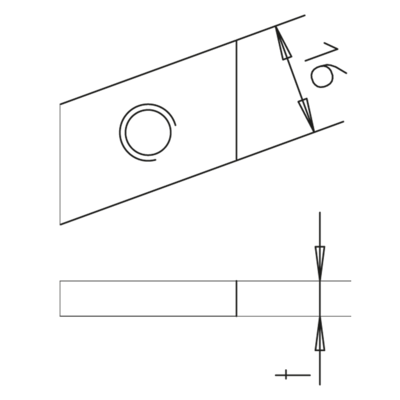

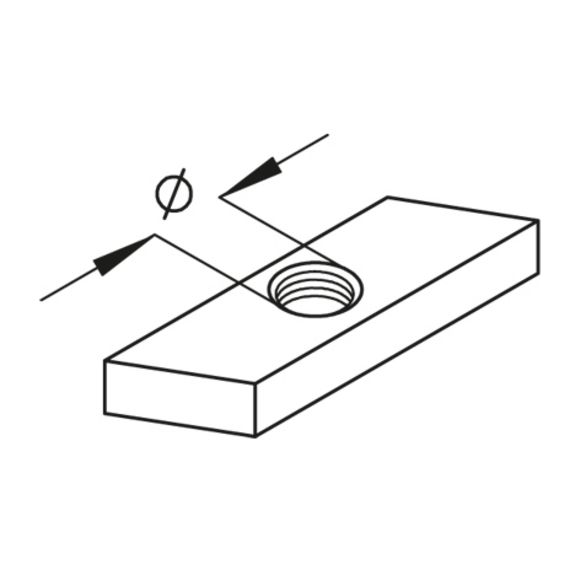

	diameter	t material thickness	weight
AM16 M6F	6 mm	5,00 mm	1 kg/100
AM16 M8F	8 mm	5,00 mm	1 kg/100

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	diameter	t material thickness	weight
AM16 M6E4	6 mm	5,00 mm	1 kg/100

Details / Applications
