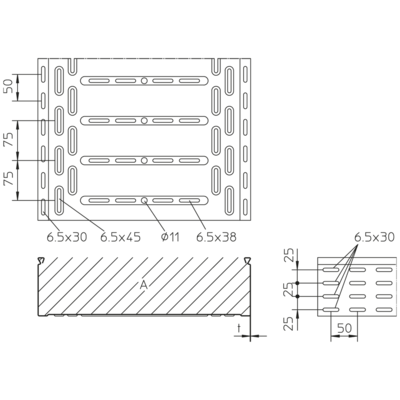

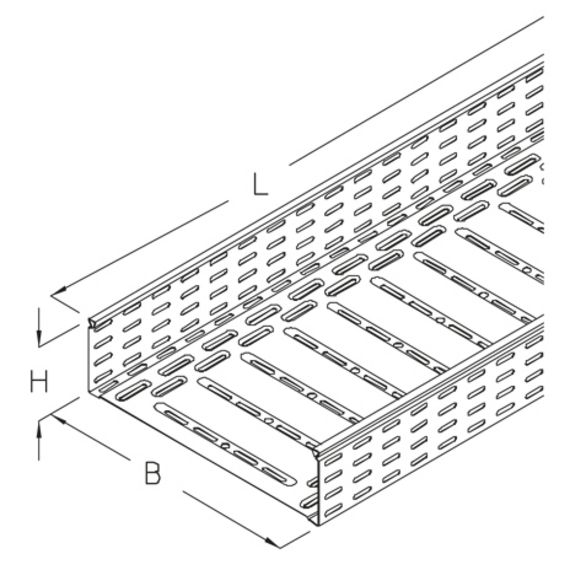

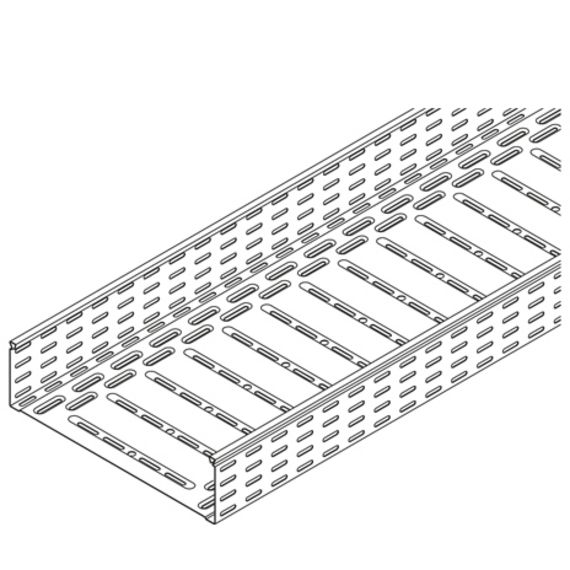

RGS 110 cable tray, perforated, heavy, height = 110 mm

heavy cable tray perforated, head shape suitable for positive locking covers, with longitudinal and lateral reinforcing rims reducing bottom deflection, certified including electrical conductivity according to DIN EN 61537

Assembly Instruction

Do not walk upon!

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RGS 110-10S	110 mm	100 mm	3000 mm	1,50 mm	107 cm²	0,16 kN/m	11,30 kg
RGS 110-20S	110 mm	200 mm	3000 mm	1,50 mm	217 cm²	0,33 kN/m	14,30 kg
RGS 110-30S	110 mm	300 mm	3000 mm	1,50 mm	327 cm²	0,49 kN/m	17,60 kg
RGS 110-40S	110 mm	400 mm	3000 mm	1,50 mm	437 cm²	0,66 kN/m	21,00 kg
RGS 110-50S	110 mm	500 mm	3000 mm	1,50 mm	547 cm²	0,82 kN/m	24,30 kg
RGS 110-60S	110 mm	600 mm	3000 mm	1,50 mm	657 cm²	0,99 kN/m	27,60 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RGS 110-10F	110 mm	100 mm	3000 mm	1,50 mm	107 cm²	0,16 kN/m	12,10 kg
RGS 110-20F	110 mm	200 mm	3000 mm	1,50 mm	217 cm²	0,33 kN/m	15,30 kg
RGS 110-30F	110 mm	300 mm	3000 mm	1,50 mm	327 cm²	0,49 kN/m	18,80 kg
RGS 110-40F	110 mm	400 mm	3000 mm	1,50 mm	437 cm²	0,66 kN/m	22,40 kg
RGS 110-50F	110 mm	500 mm	3000 mm	1,50 mm	547 cm²	0,82 kN/m	25,90 kg
RGS 110-60F	110 mm	600 mm	3000 mm	1,50 mm	657 cm²	0,99 kN/m	29,40 kg
