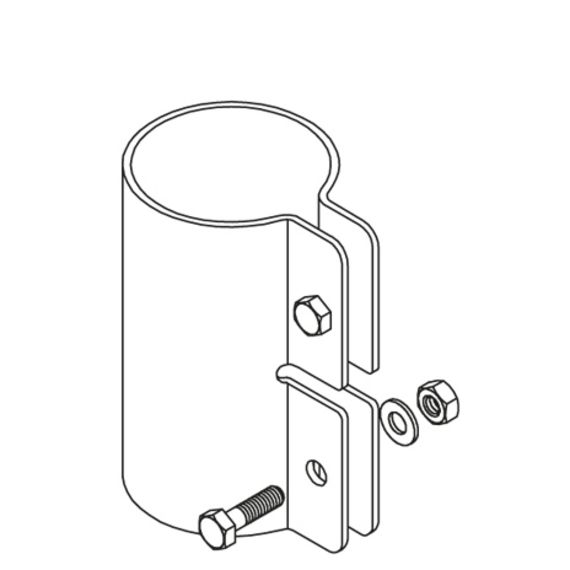

SRM clamp socket

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

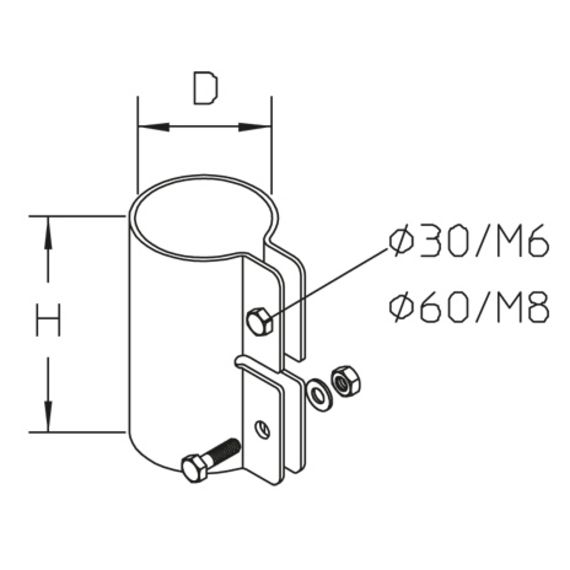

	height	diameter	t material thickness	weight
SRM 30F	80 mm	30 mm	1,50 mm	0,15 kg
SRM 60F	115 mm	60 mm	2,50 mm	0,55 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	diameter	t material thickness	weight
SRM 30E	80 mm	30 mm	1,50 mm	0,15 kg
SRM 60E	115 mm	60 mm	2,50 mm	0,55 kg

Details / Applications
