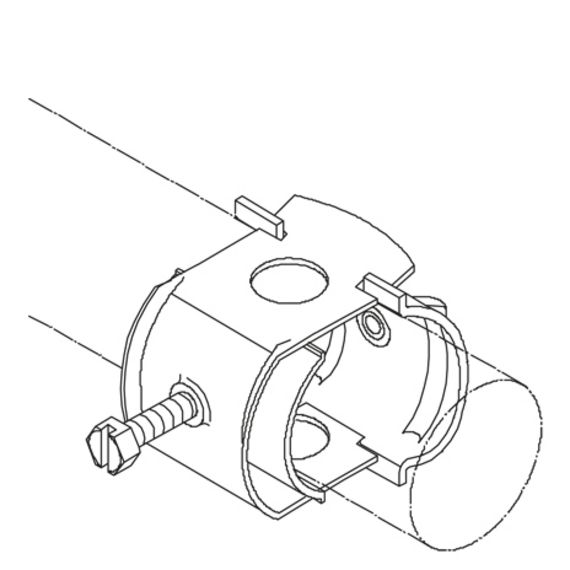

Cable clamp galvanised, for fastening directly to walls. certified according to DIN 4102-12
Zinc coated

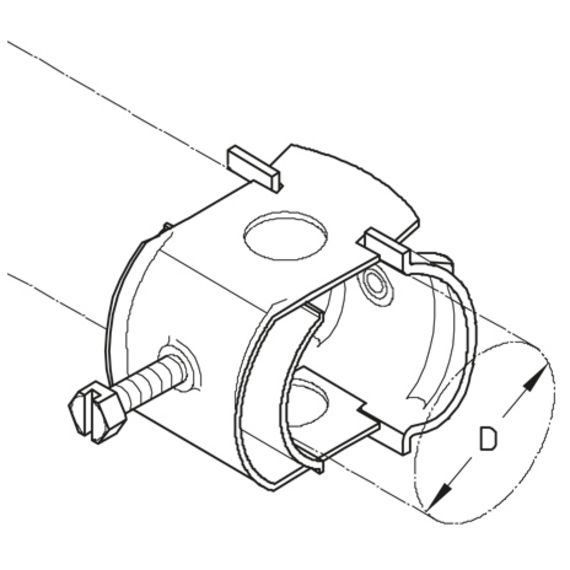

| diameter | torque | weight | ||
|---|---|---|---|---|
| 16 W | 12-16 mm | 2 Nm | 4,4 kg/100 | |
| 20 W | 16-20 mm | 2 Nm | 5,4 kg/100 | |
| 24 W | 20-24 mm | 2 Nm | 5,8 kg/100 | |
| 28 W | 24-28 mm | 2 Nm | 6,3 kg/100 | |
| 32 W | 28-32 mm | 4 Nm | 8,5 kg/100 | |
| 36 W | 32-36 mm | 4 Nm | 9,1 kg/100 | |
| 44 W | 36-44 mm | 4 Nm | 13,5 kg/100 | |
| 52 W | 44-52 mm | 4 Nm | 16,5 kg/100 | |
| 60 W | 52-60 mm | 4 Nm | 19,5 kg/100 |
Cable clamps
Cable clamps & Mounting clamps – Information
Funktionserhalt Normtragekonstruktionen Kabelschellen MPA 3335/772/1-3
