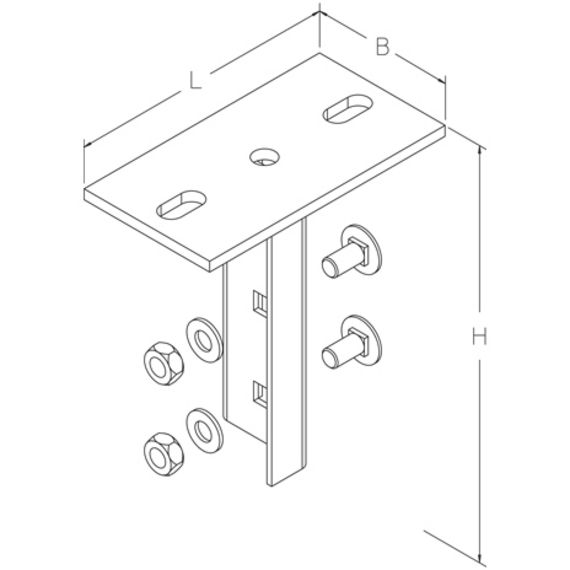

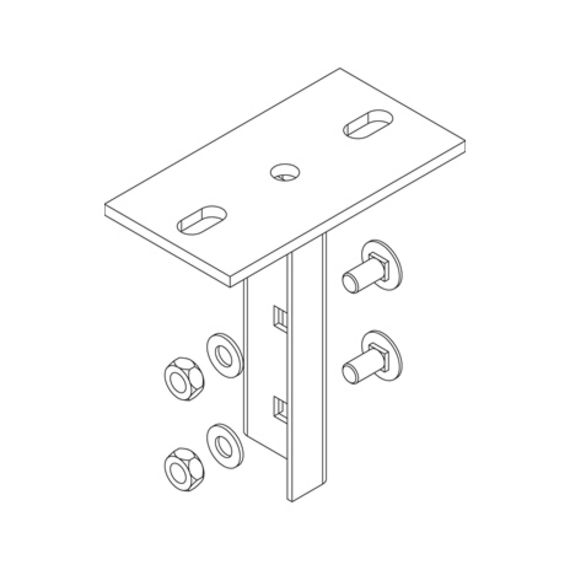

Head plate for fastening profile U 50 bracket supports to ceiling.
The producte can be used for fire protection. For technical parameters, see National Technical Test Certificates (abPs).
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

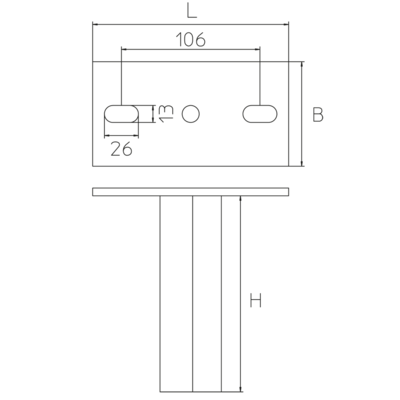

| height | width | length | weight | ||
|---|---|---|---|---|---|
| BGUQ 50F | 156 mm | 80 mm | 150 mm | 0,86 kg |
Cable trays
Support systems
Funktionserhalt Normtragekonstruktionen Steigetrassen MPABS 2500428
