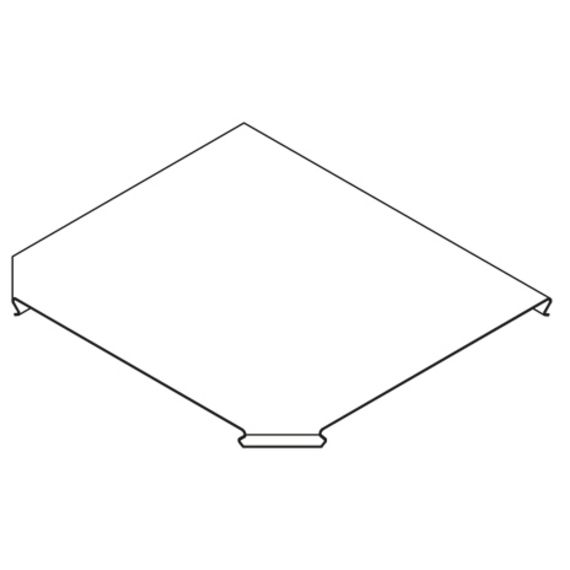

RIADS cable installation tray branch cover, heavy

cable tray branch cover for cable tray branch, positive locking

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

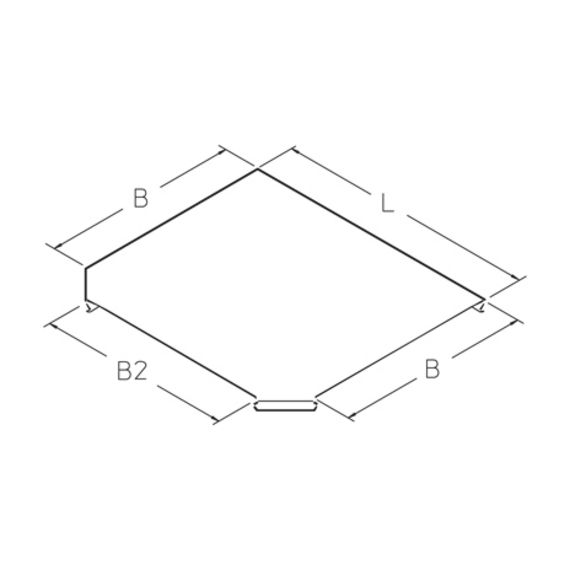

	width	width	length	t material thickness	weight
RIADS 10S	100 mm	100 mm	214 mm	1,50 mm	0,20 kg
RIADS 20S	200 mm	200 mm	314 mm	1,50 mm	0,40 kg
RIADS 30S	300 mm	300 mm	414 mm	1,50 mm	1,10 kg
RIADS 10-05S	100 mm	50 mm	164 mm	1,50 mm	0,18 kg
RIADS 20-10S	200 mm	100 mm	214 mm	1,50 mm	0,40 kg
RIADS 30-20S	300 mm	200 mm	314 mm	1,50 mm	1,10 kg
